Word怎样制做中国象棋方格，来一同做，全然源码

第一集如是说怎样用Excel制做两个中国象棋方格并能同时实现打牌机能

有关那个机能，只不过规矩也极为单纯，不外乎是许多绘图加两个仪仗良将。

透过对方格的介绍，用直角Longpr方格，接着加进棋盘，最终就已经开始火拼了。

话不多说，先看为敬

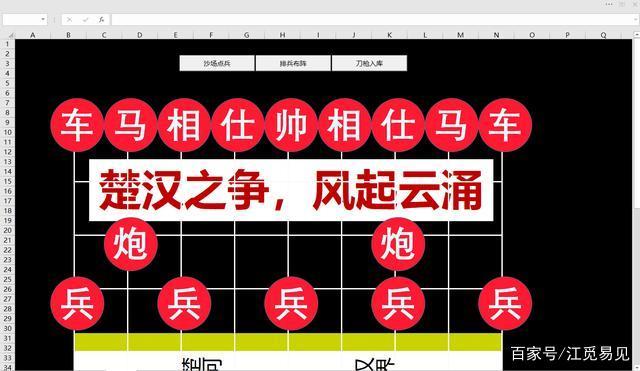

红方残局，第二局没走，是这种，仪仗老之将工兵，就位。

大背景有点儿黑，马开战。

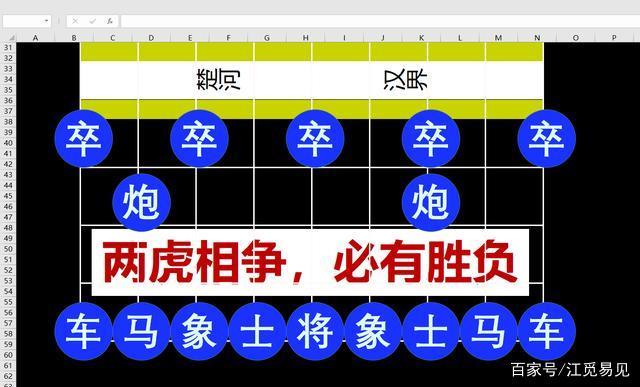

红方残局，反之亦然也交卷阵形，无法乱，乱了三则就败近矣。

车(那个紫岩ju)马象士帅

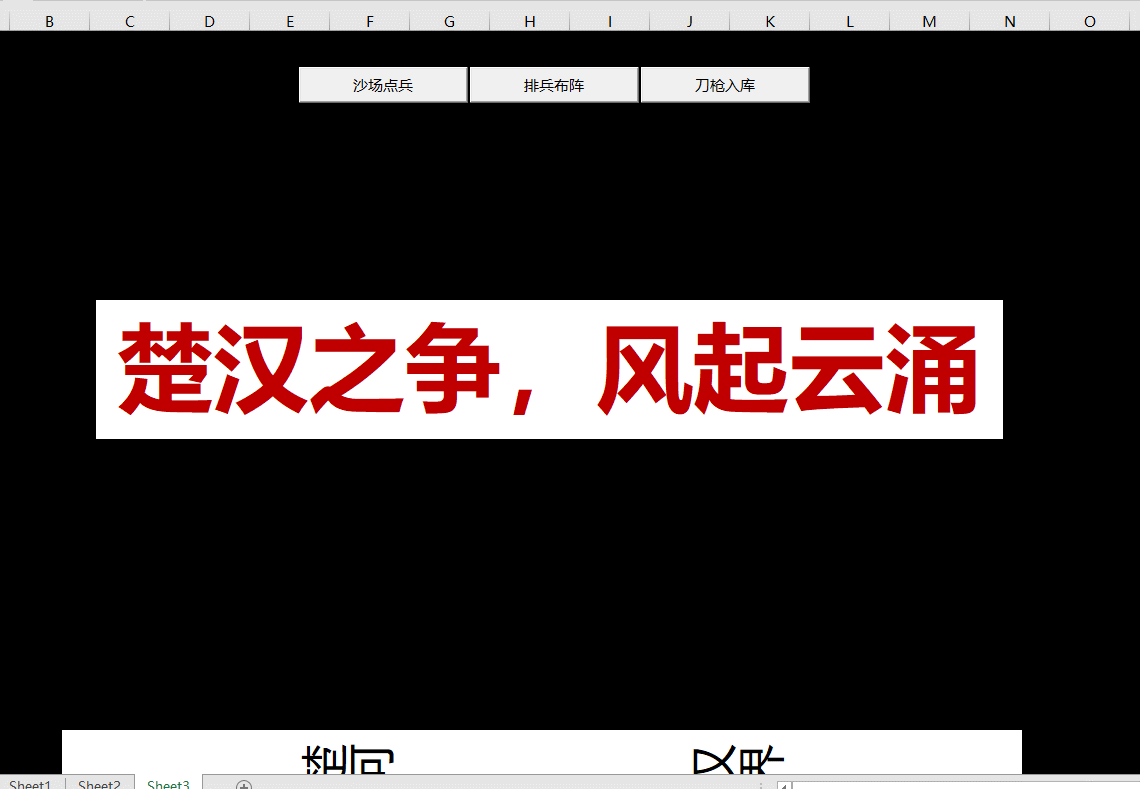

动态图更直观体现了那个机能同时实现到什么程度，下面看一下。

机能如是说

设置了三个按钮，两个绘制方格，两个绘制棋盘，两个清除残局。

感觉已经能完成一盘棋的机能了，当然了，为了公平合理，不设置悔棋。

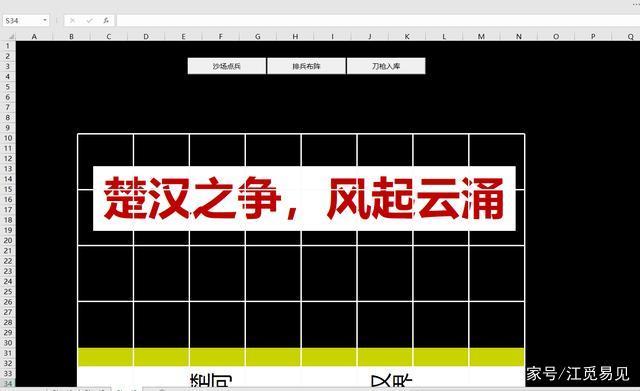

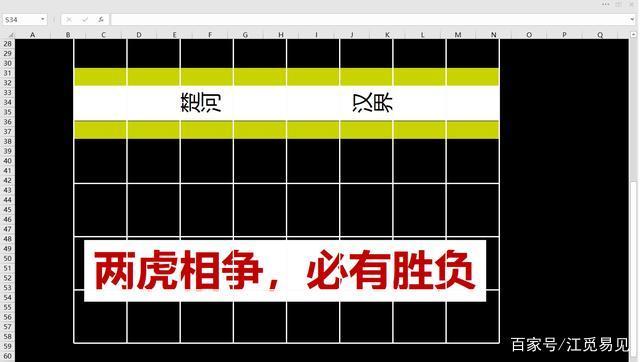

方格的样子四平八稳，没有一点特色，几百年来是这种。

看上去极为冷漠，战争嘛，没有温柔的，流血和失去生命的过程，没有人喜欢。

代码放送

主要代码:

ws.Shapes.AddShape(msoShapeOval, x, y, w, h)画圆形ws.Shapes.addLine(x,y, xEnd, yEnd)画线条

绘制方格

Sub addLine()Dim ws As WorksheetSet ws = ActiveSheetDim r As Integer, g As Integer, b As Integerr = 255g = 250b = 250Dim t As Long, l As Long, w As Long, h As Longt = 150l = 100w = 640h = 720Dim lineW As IntegerlineW = 6Dim ls As ShapeDim Ri As IntegerRi = 90Dim lw As Integerlw = lineW / 2Dim i As IntegerFor i = 0 To 9方格横线Set ls = ws.Shapes.addLine(l, t Ri * i, w l Ri – 10, t Ri * i)With lsWith .Line.Style = msoLineSingle.ForeColor.RGB = RGB(r, g, b)If i = 5 Or i = 4 Then.Weight = 30.ForeColor.RGB = RGB(200, 211, 0).Style = msoLineSingleElse.Weight = 2End IfEnd WithEnd WithNext iFor i = 0 To 8方格竖线Set ls = ws.Shapes.addLine(l Ri * i, t, l Ri * i, h t Ri)With lsWith .Line.Style = msoLineSingle.ForeColor.RGB = RGB(r, g, b).Weight = 2End WithEnd WithNext iEnd Sub

绘制棋盘

Sub addOvalFont(sArr, n, iRow, f)Dim ws As WorksheetSet ws = ActiveSheetDim o As ShapeDim x As Long, y As Long, w As Long, h As LongDim r As Integer, g As Integer, b As IntegerIf f Thenr = 255g = 25b = 50Elser = 25g = 50b = 255End Ifx = 90 * n 60y = 100 * iRoww = 90h = wSet o = ws.Shapes.AddShape(msoShapeOval, x, y, w, h)With o.Fill.ForeColor.RGB = RGB(r, g, b)With .TextFrame.VerticalAlignment = xlVAlignCenter.HorizontalAlignment = xlHAlignCenter.MarginBottom = 10.MarginLeft = 10.MarginTop = 10.MarginRight = 10With .Characters.Text = sArr 棋盘文字With .Font.Size = 60.Bold = True.Name = “隶书”.Color = RGB(225, 255, 255)End WithEnd WithEnd WithDoEventsEnd WithEnd Sub

方格布局

Private Sub CommandButton1_Click()ClearOvalShapeDim sArrsArr = Array(“车”, “马”, “相”, “仕”, “帅”, “相”, “仕”, “马”, “车”)sarr3 = Array(“炮”)sarr4 = Array(“兵”)sArr2 = Array(“车”, “马”, “象”, “士”, “将”, “象”, “士”, “马”, “车”)sarr5 = Array(“卒”)Dim n As IntegerFor n = 0 To UBound(sArr)Call addOvalFont(sArr(n), n, 1, True)Call addOvalFont(sArr2(n), n, 9, False)Next nCall addOvalFont(sarr3(0), 1, 3, True)Call addOvalFont(sarr3(0), 6, 3, True)For n = 0 To 8 Step 2Call addOvalFont(sarr4(0), n, 4, True)Next nCall addOvalFont(sarr3(0), 1, 7, False)Call addOvalFont(sarr3(0), 6, 7, False)For n = 0 To 8 Step 2Call addOvalFont(sarr5(0), n, 6, False)Next nEnd Sub

结尾

互动机能是第一次用excel来制做，整体效果很好，唯一比较难的是对绘图位置定位，那个要有一定是数学计算能力，和绘图大小变化，位移等等理解，做起来需要多次调试。

最终结果也不是极为精确，为了让整个方格显得像那么回事儿，做了不少重复无聊的调试。

有兴趣的朋友能自己试着做一下。
